Life Fitness Removable Swivel Link Cable End

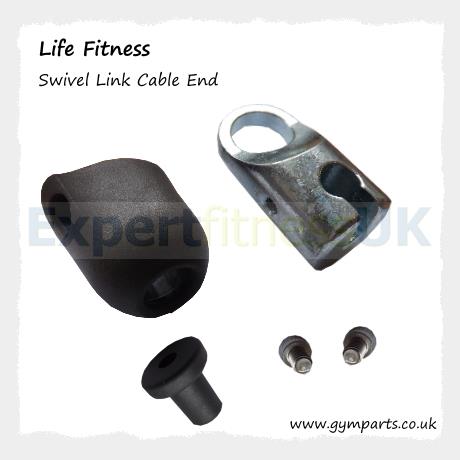

Life Fitness Removable Swivel Link Cable End to suit 3mm or 4mm Wire Rope Ball Shank Ends. Supplied complete with Plated Swivel Link, Rubber Housing, Rubber Tail Insert and Screws

Used on: Can be used on ANY product although manufactured for: Life Fitness Signature Cable Motion Adjustable Crossover, Life Fitness Signature Cable Motion Chest Press, Life Fitness Signature Cable Motion Pulldown, Life Fitness Signature Cable Motion Cable Column, Life Fitness Signature Cable Motion Dual Adjustable Pulley, Life Fitness Signature Cable Motion Row, Signature Series Multi Jungle Adjustable Pulley, Signature Series Multi Jungle Adjustable Pulley Row, Signature Series Multi Jungle Adjustable Crossover, Signature Series Multi Jungle Dual Pulley Pulldown

Fitting Method: This Life Fitness Swivel Link End is designed to be used with a Ball Shank Gym Cable. The Rubber Tail is fitted over the Wire Rope Ball Shank followed by the Rubber Housing then the Ball Shank is slotted into the side of the Swivel Link End and down the slot into position. The Rubber Housing and Tail are pulled back onto the Swivel Link (this will close off the hole and stop the Ball Shank slipping out). The Rubber Housing is finally held in position by the x2 Screws which are fully tightened. This type of fitting is extremely useful in aiding the routing / fitting of a new cable through closed framework where space is limited as the Swivel Link End can be fitted afterwards.

Material: Plated Steel and Rubber

Plated Swivel Link: Used with a Ball Shank fitted to 3mm or 4mm Wire Rope (Choose Below)

Rubber Housing: Slides over the Metal Swivel Link to Retain Wire Rope

Rubber Tail Insert: Fits into Rubber Housing to provide Wire Rope Support

Screws: x2 Screws fix between Plated Swivel Link and Rubber Housing to make Secure

Quantity: (Each) Add to basket and change required amount in Qty Box

Brand: Life Fitness

Availability: In Stock

Part Number: 17-0060

From: £21.00 ex VAT
