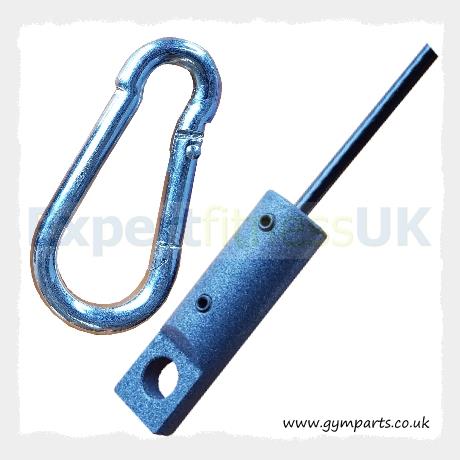

Gym Cable Wire Rope Quick Fit Eyelet End Fitting Connector complete with Gym Grade Carabina Clip for use with 5mm Gym Cable Wire Rope. Ideal for use when the Wire Rope has to travel through equipment framework or numerous Pulley Wheels or when it's not possible to fit a Gym Cable with Ready Made Fittings already pressed on. Also suitable to fit in place of a damaged or snapped Marine Eye or Eyelet as the Quick Fit connector can be pushed onto the remainder of the Cable left in tact.
Quick and easy to fit... just insert the Wire Rope fully into the Quick Fit Eyelet Connector (no need to remove any outer coating) and whilst ensuring that the wire is fully pushed in then tighten the x3 Screws, starting with the one nearest the eyelet and then the middle screw and finally the one nearest the entrance hole. Make sure that all x3 screws have been sufficiently tightened to ensure the fitting doesn't work loose.
Note: Due to the type of Fixing Screws used there is no need to remove Wire Nylon Coating
Material: Made using BRITISH STEEL and supplied Coated
Eyelet Wire Hole Size: 6.5 mm drilled hole for use with 6.3mm max Wire Rope (use with or without covering)
Eyelet Length: 75mm Long
Eyelet Hole Size: 11.5mm
Gym Grade Carabina Clip: Carries a Safe Working Load of 135KG and a 340KG Break Load
Quantity: (Each) Add to basket and change required amount in Qty Box
Note: HAND MADE IN WALES not CHINA
Availability: In Stock
Part Number: 17-0064
