Matrix 4 Station Pulley Hi Low Rail Slider Sleeve Insert

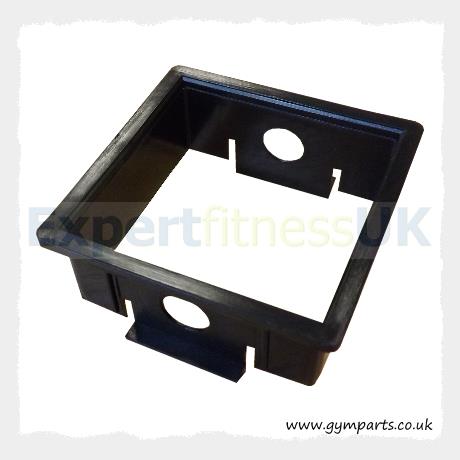

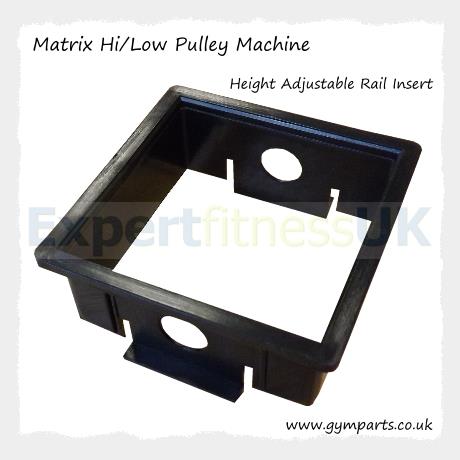

Matrix 4 Station Hi Low Pulley Nylon Rail Slider Sleeve Insert (approx 60mm x 60mm OD) used on Matrix Adjustable Hi Lo Pulley

The Nylon Sleeve is designed to fit into 2″ x 2″ square metal box section (SHS) that has a 2mm – 2.5mm wall thickness (12-14gauge). The Nylon Sleeve Inside Diameter is 1 3/4″ to allow 1 3/4″ metal box section to slide inside it. There are two holes either side of the Nylon Sleeve that will locate into pre-drilled holes within the outer 2″ Square Box Section (SHS) to help lock the Nylon Sleeve into place using a short Self Tapping Screw

Quantity: (Each)

Part Number: 10-0066
